VS2000

The VS2000 series supports the distribution of uncompressed long-distance multemedia over Category cables or fiber. Supporting HDBaseT 2.0, it enables uncompressed HDMI 1.4 long reach connectivity with zero latency.

HDMI 1.4

LVDS

I2S

S/PDIF

Ethernet

USB 2.0

I2C

UART

IR

MSIO

CEC

Power

Convergence

Video (Uncompressed HDMI 1.4, LVDS), Audio (I2S, S/PDIF), Ethernet (100Mbps), USB 2.0, Controls (I2C, UART, CIR), and Power over a single Category cable

High bandwidth extension

8Gbps/300Mbps for up to 100m/328 ft

Flexible network architecture

Supporting point-to-point, multi-stream, and daisy chain, topologies

Market Applications

Product Series

VS2310

Uncompressed 4K@60Hz 4:2:0, converging all interfaces for up to 100 meters

Uncompressed 4K@60Hz 4:2:0, converging all interfaces for up to 100 meters

Key Specs:

Bandwidth

8Gpbs/300Mbps

Reach

100m

Channel

Cat

VS2311

VS2310 companion chip, enabling HDBaseT over fiber for distances of up to 10km

VS2310 companion chip, enabling HDBaseT over fiber for distances of up to 10km

Key Specs:

Bandwidth

8Gpbs/300Mbps

Reach

10km (coupled with VS2310)

Channel

Cat

VS2000

Uncompressed 4K@60Hz 4:2:0, converging all interfaces excluding USB

Uncompressed 4K@60Hz 4:2:0, converging all interfaces excluding USB

Key Specs:

Bandwidth

8Gpbs/300Mbps

Reach

100m

Channel

Cat

VS2110

Cost-optimized uncopressed 1080p@60Hz 4:4:4, converging all interfaces excluding Ethernet, for short-distance applications

Cost-optimized uncopressed 1080p@60Hz 4:4:4, converging all interfaces excluding Ethernet, for short-distance applications

Key Specs:

Bandwidth

8Gpbs/300Mbps

Reach

30m

Channel

Cat

VS210

Cost-optimized uncopressed 4k/1080p, converging all interfaces excluding Ethernet, for short-distance applications

Cost-optimized uncopressed 4k/1080p, converging all interfaces excluding Ethernet, for short-distance applications

Key Specs:

Bandwidth

8Gpbs/300Mbps

Reach

40-70m

Channel

Cat

VS200

Cost-optimized uncompressed 4k/1080p, converging all interfaces excluding USB and Ethernet, for short-distance applications No Ethernet or USB extension

Cost-optimized uncompressed 4k/1080p, converging all interfaces excluding USB and Ethernet, for short-distance applications No Ethernet or USB extension

Key Specs:

Bandwidth

8Gpbs/300Mbps

Reach

40-70m

Channel

Cat

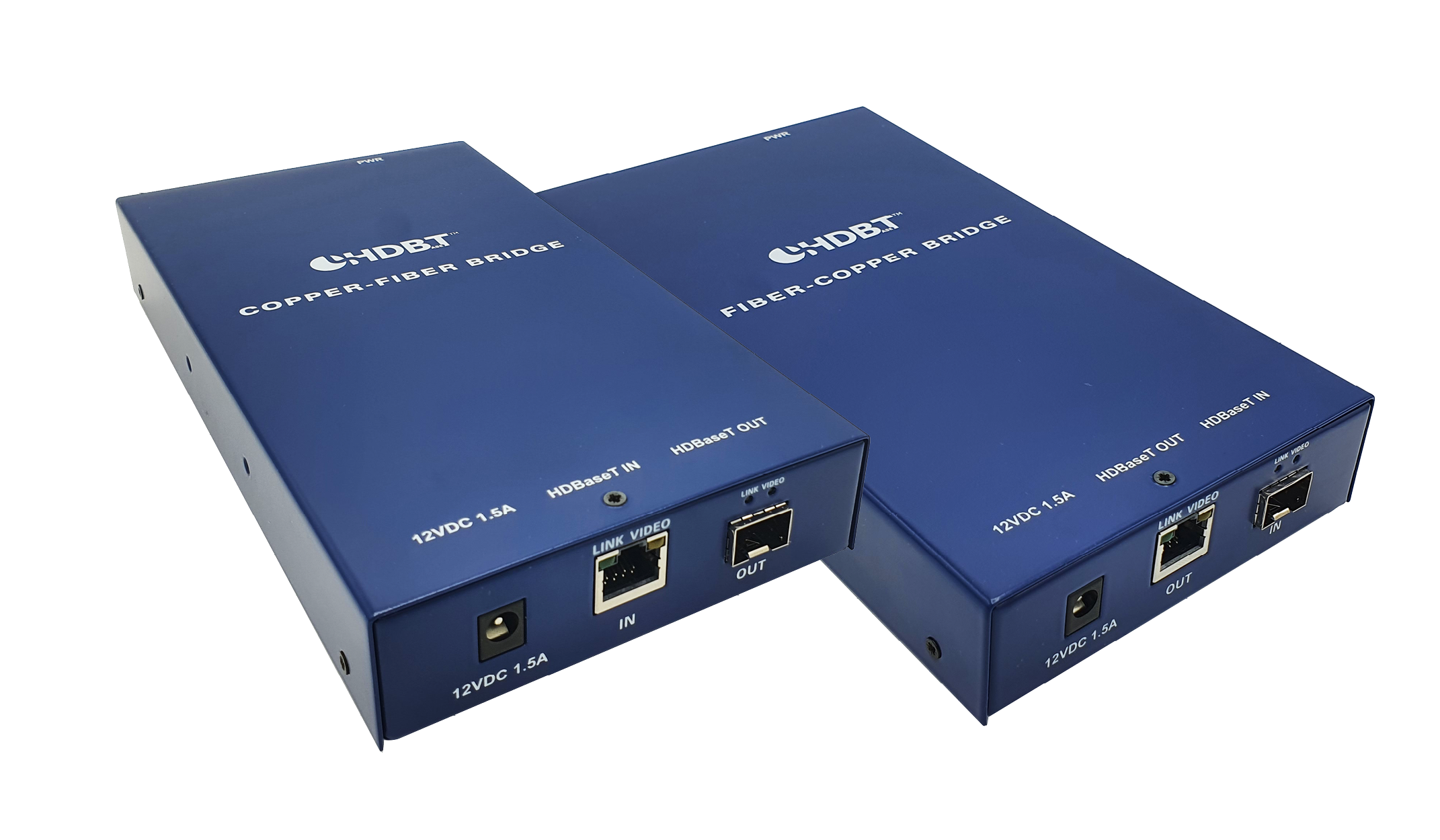

HDBaseT Fiber-Copper Bridge

HDBaseT fiber-optic bridge kit for extending HDBaseT traffic over a fiber link

HDBaseT fiber-optic bridge kit for extending HDBaseT traffic over a fiber link

Key Specs:

Bandwidth

8Gpbs/300Mbps

Reach

Multi-mode SFP+: 800m; Single-mode SFP+: 10km

Channel

Cat

VS2310 SoM

Pre-validated System-on-Module for fast roll-out to market

Pre-validated System-on-Module for fast roll-out to market

Key Specs:

Bandwidth

8Gpbs/300Mbps

Reach

100m

Channel

Cat
